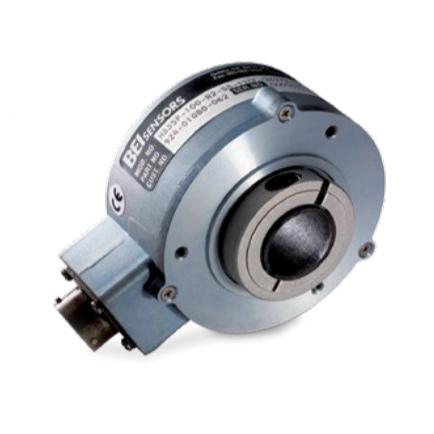

BEI Sensors Absolute encoder HS35

HS35 Series Absolute Encoder Parallel, Analog, SSI

Categories: ,
Description

Built on the same rugged design as the incremental model, the HS35 Absolute Encoder is available with various output options including Gray Code and Natural Binary.

Features

Designed with a cast aluminum housing, a sealed connector and shaft seals, it carries an IP65 environmental rating. With the optional insulating inserts, it can be mounted on smaller diameter shafts. It is designed for either a through shaft mounting or blind shaft mounting with a closed cover to maintain its environmental rating.

Additional information
Brand

About Bei Sensors
Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
Options Parallel: NB or GC 12-14 Bits (See Table 1)
Serial (S3): 12-16 Bits (See Table 3)
Analog: (A1-A5) 12-15 Bits (See Table 2)
Count Transition Accuracy ±1/2 Bit Maximum
(Consult factory over 13 Bits)
Counts per Shaft Turn 4096 - 65536, Depending on Options
Supply Voltage 5 to 28 VDC, 13 to 28 VDC for analog
Output Formats Parallel: Gray Code, Natural Binary, Serial and Analog
Voltage/Output (see note 2)
28V/V: Line Driver, 5–28 VDC in, Vout = Vin
28V/5: Line Driver, 5–28 VDC in, Vout = 5 VDC
28V/OC: Open Collector, 5–28 VDC in, OCout
SSI: 5–28 VDC in/5Vout (consult factory for more information)
Analog: A1-A5
Protection Level Reverse, overvoltage and output short circuit protection
Frequency Response 500kHz or 6000 RPM (Parallel)
Output Termination Pinouts See TablesFor S3 options, reference Spec Addendum 02087-005For A1-A5 options, reference Spec Addendum 02088-002
