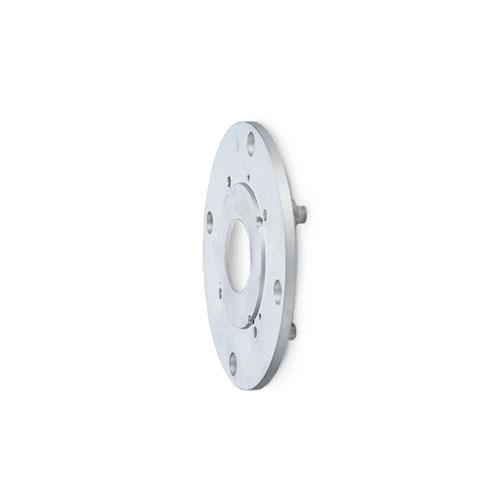

Mounting/Adapters 5PY Adapter 38228-00X
This is a standard 5PY style motor adapter. It is available in aluminum or Delrin plastic and can be used to mount a Model H20D or H25D square flange encoder or an H25E encoder using the synchro clamp kit (31165-001, ordered separately).
| Brand |
|---|
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
| Encoder Model | Adapter | Hardware to mount encoder to accessory | PN to Order |
| H20D | N/R | 4 X #6-32 UNF | 38228-001 Aluminum 38228-002 Delrin |
| H25D | N/R | 4 X #10-32 UNF | |
| H25E | 31165-001 Synchro Clamp set (Order Separately | 3 X #4-40 UNC |
