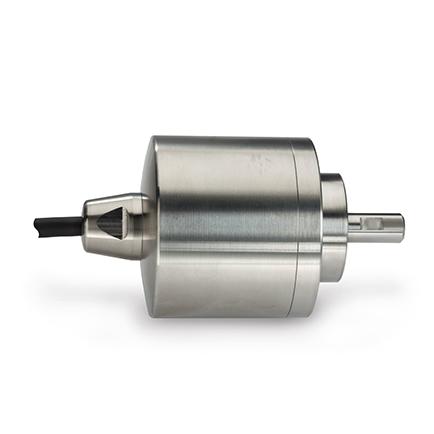

DSM5X Series SIL3 Stainless Steel IP69K Incremental Rotary Encoder
| Brand |
|---|
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
| Material | Cover: AISI 316 stainless steel Body: AISI 316 stainless steel Shaft: AISI 316 stainless steel |
| Bearings | 6000 series |
| Maximum Loads | Axial: 100 N |
| Radial: 200 N | |
| Shaft Inertia | < 2 500 g.mm2 |
| Static/Dynamic torque | 10 / 45 mN.m |
| Permissible max. speed | 6,000 RPM |
| Continuous max. speed | 3,000 RPM |
| Theoretical mechanical lifetime L10h | 4.71 X 109 turns / 26,150 hours |
| Encoder weight (approx.) | 0.75 kg |
