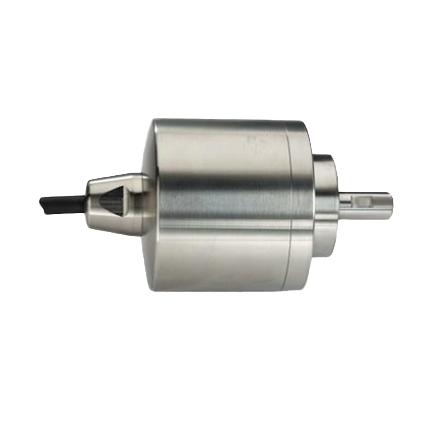

Built from a solid and reliable mechanical and electrical platform, this product series was built from the ground up for reliability and robustness. Electrical protection is built in to reduce “first installation” errors. Mechanically, the high precision bearings coupled with performant sealing mean long life, even in harsh conditions. And the product is tested and rated to perform from -40°C to +100°C for operation in extreme environments. This is the best all around encoder in a 58mm package for heavy duty industrial use
Applications: Food and beverage, chemical and pharmaceutic, offshore/river, factory automation, outdoor motor feedback, conveyors.
Features
- Robustness, excellent resistance to corrosion (stainless steel design in AISI 303 or AISI 316 selectable)
- Hygienic design option
- High Protection Level up to IP69K, IP68
- Native or programmable resolution up to 500 000 ppr
- Universal Electronic Circuits from 4.75 to 30 Vdc
- High Performance in Temperatures –40°C to 100°C
- High bandwidth: Up to 1MHz
