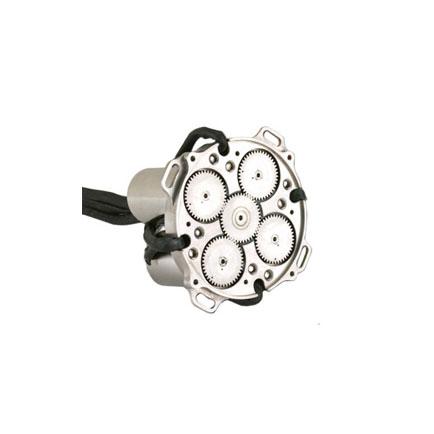

RVDTs with integral gear heads are available for applications with higher angular displacements or multiple revolutions.
In those cases where many input revolutions must be measured for position such as in trailing edge flap systems, Sensata can provide a high precision gear head to extend the input range into the thousands of revolutions range.
Features
- High reliability (MTBF of 1,000,000 hrs. typical)
- High accuracy (± 0.25% full scale)
- Stable output as high as 80g vibration
- Pressurized & hermetically sealed designs available
- Precision alignment or coupling features
- Angular & rotary measurements
- Multiple channels (tandem or parallel)
- Single cycle (± 80°) or dual cycle (± 40°)
- Non-contact brushless rotor design
- Infinite angular displacement with gear reduction designs
- Size 8 or size 11 servo or flange mount
- Lightweight, robust designs, small package
- Constructed for stability and interchangeability over its life
- Qualified to RTCA/DO-160 and MIL-STD-810 specs
Applications
- Stand-alone airframe
- Flight control actuators
- Valves
- Nose wheel steering systems
- Cockpit controls
- Engine bleed air systems
- Fuel controls
- Fly-by-wire systems
- Brake-by-wire systems
- Environmental control systems
