Based on a proven solid and reliable mechanical and electrical platform, this product series was designed and built for reliability and robustness. Electrical protection is built-in to reduce “first installation” errors. Mechanically, the high precision sealed bearings were chosen for long life, even in harsh conditions. And the product is tested and rated to perform from -40° to 100°C. Standard commutation options go as high as 16 pole pairs to handle a range of commutation requirements. This is an excellent 58MM encoder for general use in heavy duty industrial environments.
Applications: Industrial automation; automated guided vehicles; mills for lumber, steel, and other metals; printing and packaging equipment; food processing equipment; forming and die presses.
Features

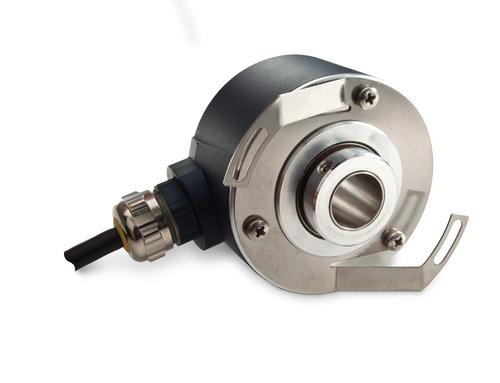

KH_5 Rotary Incremental Encoder:
- Robust and excellent resistance to shocks / vibrations
- High Protection Level IP65, IP67 Option with a Sealing Flange
- High Resolutions Available: Up to 500 000 ppr
- Commutation channels up to 16 pole pairs
- Universal Electronic Circuits from 4.75 to 30 Vdc
- High Performance in Temperatures –40°C to 100°C
- High bandwidth: Up to 1MHz
