MAG-TS’s performance, design characteristics and ease of installation make it ideally suited for metal fabrication, sawing, woodworking and general measurement applications. MAG-TS encoder consists of a reading head that travels along a magnetically encoded tape. The tape is made of a ferrous backing affixed to a flexible magnetized rubber substrate that is protected by a stainless steel cover strip. The MAG-TS can be mounted directly to the machine surface by using the provided adhesive strip. Alternatively, the tape can be attached to an optional backer bar that is then mounted to the machine surface.

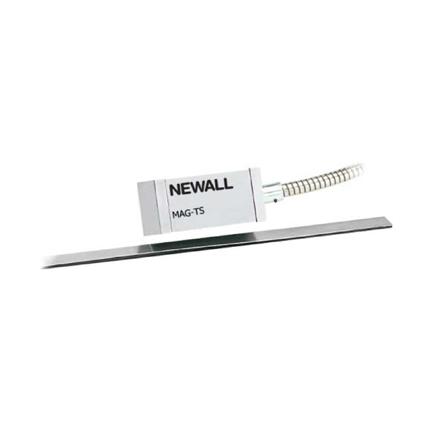

BEI Sensors MAG-TS Linear / Angular Magnetic Tape Encoder
MAG-TS Linear / Angular Magnetic Tape Encoder
Description
Additional information
| Brand |
|---|
About Bei Sensors
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
| Code | Incremental |
| Supply Voltage | 5VDC +/-5% |
| Current | Typ. 150mA (250mA max.) |
| Output Format | Differential TTL |
| Reference Mark | Selectable |
| Resolution | 10μm (0.0005”) |
| Measurement Speed | 2Mhz |
