Features:
Ex-Protection Zone 1/2/21/22
Functional safety
IECEx certified
Option stainless steel housing
Position feedback signals
Redundant scanning system
SIL3, PLe

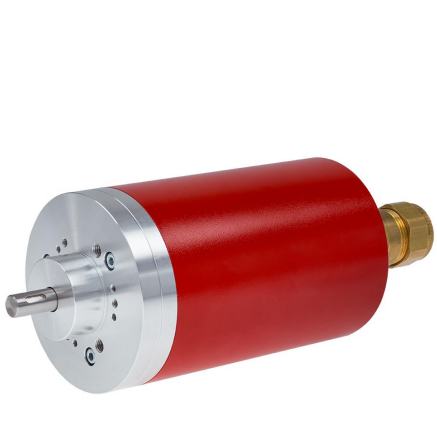

TR-Electronic ADV88M – EPN + FS Absolute Encoder
Absolute-Encoder ADV88M – EPN + FS
(A) ATEX, (C) Compact Encoder, (V) Solid shaft
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 13/27 VDC Nominal current, typically - Specific value 180 mA - Condition unloaded Supply - SELV/PELV IEC 60364-4-41 Power consumption <= 4 W stainless steel type <= 6 W aluminum type Device design - Type Multi-Turn - Redundant scanning system yes, double - Design optical/magnetic Total resolution <= 28 Bit Number of steps per revolution <= 8192 Number of revolutions <= 32768 PROFINET IO - Interface - PROFINET IO – Device IEC 61158, IEC 61784-1 - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - PROFINET-Specification V2.2 - Conformance Class B, C - Real-Time-Classes Class 1, 2 (RT), Class 3 (IRT) - PROFIsafe-Profile No. 3.192b Incremental - Interface - Equipment Optional interface - Signal form Square wave - Signal form, alternative SIN / COS - Incremental signals, square K1± K2± - Incremental signals, SIN/COS SIN± COS±, 1 Vss - Impulses, square wave 4096…20480, in steps of 4096 - Impulses, SIN/COS - Output driver, TTL RS-422, 5 VDC - Output driver, HTL Push-Pull, 13…27 VDC - Type of parametrization Factory setting Transmission rate - Specific value 100 MBit/s Cycle time >= 1000 µs (IRT/RT) - Not safety related 0.5 ms - Safety related 5 ms Parameter/Function, changeable Integration time Preset parameter Monitoring window Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device Functional safety - Safety principle Redundance with cross compare - SIL-Standardization DIN EN 61508 / DIN EN 62061 - SIL-Level SIL3 / SIL CL 3 - PL-Standardization DIN EN ISO 13849 - Performance-Level (PL) PLe / Cat. 4 - Service life 20 Years - PFH / PFH [D] 1.46E-9 1/h - PFH / PFH [D] PFH: DIN EN 61508-4 - PFH / PFH [D] PFH [D]: DIN EN ISO 13849-1 - PFDav, T = 20 a 1.27E-4 - MTTFd 421 a - DCavg 95 % Maximum Speed, mechanically <= 6000 1/min Shaft load, axial/radial <= 40 N, <= 60 N Bearing life time >= 3.68E+10 revolutions Bearing life time - Parameter - Speed 3000 1/min - Operating temperature 60 °C - Shaft load, axial/radial <= 20 N, <= 30 N Point of origin, shaft load at the shaft end Shaft type - Shaft diameter [mm] 10
