Features:
Blind hole shaft up to 15 mm
Option: +SSI or +INC
Parameterizable gear unit
Replacement for old systems
Salt water resistant

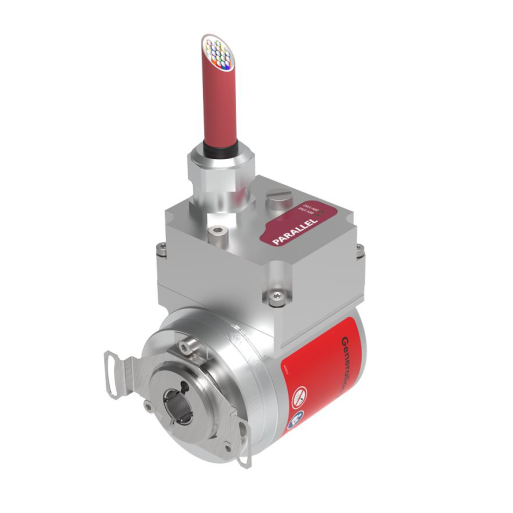

TR-Electronic CES582 – Parallel Absolute Encoder
Absolute-Encoder CES582 – Parallel
(C) Compact Encoder, (S) Blind shaft, Parallel
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 10/30 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 33 Bit Number of steps per revolution <= 32768 Number of revolutions <= 256000 Output capacity <= 28 Bit SSI - Interface - Equipment Optional interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 4…999 µs - Output code Binär, Gray, Gray clipped
Nominal voltage - Specific value 24 VDC - Limit values, min/max 10/30 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 33 Bit Number of steps per revolution <= 32768 Number of revolutions <= 256000 Output capacity <= 28 Bit SSI - Interface - Equipment Optional interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 4…999 µs - Output code Binär, Gray, Gray clipped
