Features:
Blind hole shaft up to 15 mm
Compact industry standard
Option: +INC
Parameterizable gear unit
Salt water resistant

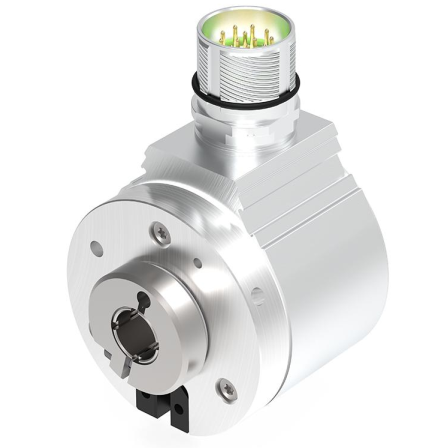

TR-Electronic CES582M*1024/4096 SSI Absolute Encoder
Absolute-Encoder CES582 – SSI
(C) Compact Encoder, (S) Blind shaft, SSI
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
Technical data for CES582M-10212
NO.OF STEPS/REV 1.024,000 NO. OF REVOLUTIONS 4.096,000 INTERFACE SSI CODE GRAY SUPPLY VOLTAGE 10-30V CONNECTOR TYPE 1x M23 12-PIN 0°-CODE MALE CCW CONNECTOR-POSITION RADIAL SHAFT EXECUTION SACKLOCHWELLE SHAFT TYPE D12H7 OPERATING TEMPERATURE -20°C… +75°C PROTECTION Class IP65 MTTFd [y] (T=45°C, DC=0) >= 200 OPTIONS ENC CLAMPING RING ON FLANGE DREHMOMENTSTÜTZE M4,TK90
General data for K-CES58_2-SSI-1
Nominal voltage - Specific value 24 VDC - Limit values, min/max 10/30 VDC Nominal current, typically - Specific value 45 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 33 Bit Number of steps per revolution <= 32768 Number of revolutions <= 256000 Output capacity <= 30 Bit SSI - Interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 9…41 µs - Output code Binär, Gray, Gray clipped - Number of data bits 1…64 - Type of parametrization programmable Incremental - Interface - Equipment Optional interface - Incremental signals, square K1± K2± K0±
NO.OF STEPS/REV 1.024,000 NO. OF REVOLUTIONS 4.096,000 INTERFACE SSI CODE GRAY SUPPLY VOLTAGE 10-30V CONNECTOR TYPE 1x M23 12-PIN 0°-CODE MALE CCW CONNECTOR-POSITION RADIAL SHAFT EXECUTION SACKLOCHWELLE SHAFT TYPE D12H7 OPERATING TEMPERATURE -20°C… +75°C PROTECTION Class IP65 MTTFd [y] (T=45°C, DC=0) >= 200 OPTIONS ENC CLAMPING RING ON FLANGE DREHMOMENTSTÜTZE M4,TK90
General data for K-CES58_2-SSI-1
Nominal voltage - Specific value 24 VDC - Limit values, min/max 10/30 VDC Nominal current, typically - Specific value 45 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 33 Bit Number of steps per revolution <= 32768 Number of revolutions <= 256000 Output capacity <= 30 Bit SSI - Interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 9…41 µs - Output code Binär, Gray, Gray clipped - Number of data bits 1…64 - Type of parametrization programmable Incremental - Interface - Equipment Optional interface - Incremental signals, square K1± K2± K0±
