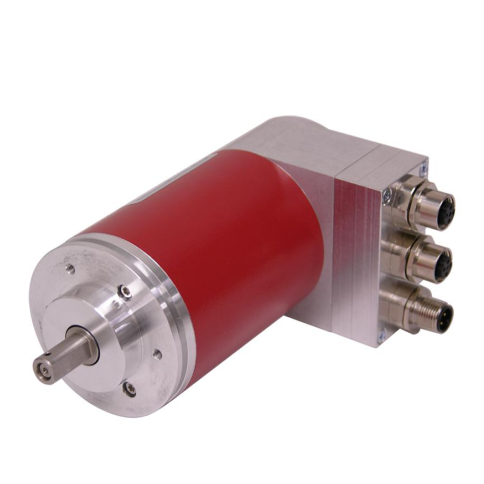

TR-Electronic CEV65 – EPL Absolute Encoder
Absolute-Encoder CEV65 – EPL
(C) Compact Encoder, (V) Solid shaft, POWERLINK
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/27 VDC Nominal current, typically - Specific value 120 mA - Condition unloaded Device design - Type Single-/Multi-Turn Total resolution <= 31 Bit Number of steps per revolution <= 8192 Number of revolutions <= 256000 Output capacity <= 25 Bit POWERLINK - Interface - POWERLINK IEC 61784-2, IEC 61158 ff - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - Device profile CoE, CiA DS-406 Transmission rate - Specific value 100 MBit/s Cycle time >= 400 µs Parameter/Function, changeable Resolution Preset parameter Counting direction Type of parametrization programmable Programming - Tool Fieldbus-Device Maximum Speed, mechanically <= 6000 1/min Shaft load, axial/radial <= 40 N, <= 60 N Bearing life time >= 3.9E+10 revolutions Bearing life time - Parameter - Speed 3000 1/min - Operating temperature 60 °C - Shaft load, axial/radial <= 20 N, <= 30 N Point of origin, shaft load at the shaft end Shaft type - Shaft diameter [mm] 6 - Shaft diameter [mm] 8 - Shaft diameter [mm] 10 - Shaft diameter [mm] 12 - Shaft diameter [mm] 14 - Shaft diameter ["] 3/8 Angular acceleration <= 10E+4 rad/s² Moment of inertia, typically 2.5E-6 kg m² Start-up torque, 20 °C 2 Ncm Mass, typically 0.7 kg
