Features:
Customer-specific solutions
Factory parametrization
Rugged construction

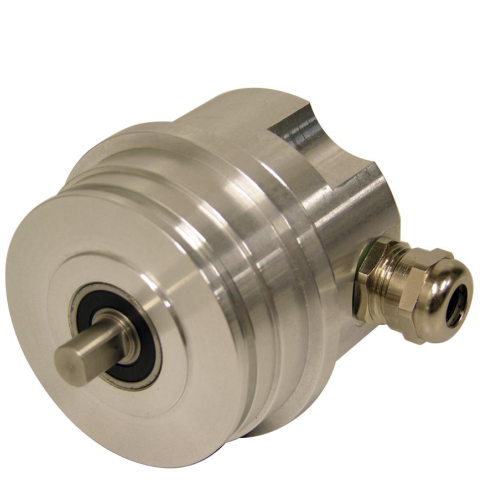

TR-Electronic CEV76S-00005 Absolute Encoder
Absolute-Encoder CEV76S-00005
(C) Compact Encoder, (V) Solid shaft, Parallel
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/30 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Device design - Type Single-Turn Total resolution <= 9 Bit Number of steps per revolution <= 480 Number of revolutions 1 Parallel - Interface - Parallel Output Position data - Push-Pull Supply voltage -1 V Parameter/Function, changeable Resolution Output code Preset parameter Parity Special bits Counting direction Type of parametrization Factory setting Shaft type - Shaft diameter [mm] 10
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/30 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Device design - Type Single-Turn Total resolution <= 9 Bit Number of steps per revolution <= 480 Number of revolutions 1 Parallel - Interface - Parallel Output Position data - Push-Pull Supply voltage -1 V Parameter/Function, changeable Resolution Output code Preset parameter Parity Special bits Counting direction Type of parametrization Factory setting Shaft type - Shaft diameter [mm] 10
