Features:
Distributed Clocks
Free process data mapping
Option: +SSI
Preset “on the fly”
Rugged standard

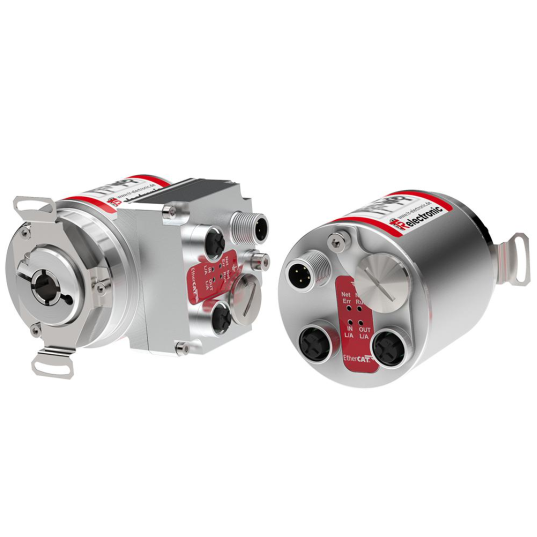

TR-Electronic CMS582 – EtherCAT Absolute Encoder
Absolute-Encoder CMS582 – EtherCAT
(C) Compact Encoder, (S) Blind shaft, EtherCAT
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 10/30 VDC Nominal current, typically - Specific value 100 mA - Condition unloaded Supply - In case of UL / CSA approval according to NEC Class 2 Device design - Type Single-/Multi-Turn Total resolution <= 31 Bit Number of steps per revolution <= 8192 Number of revolutions <= 256000 Accuracy ± 0.5 ° EtherCAT - Interface - EtherCAT IEC 61158-1–6, IEC 61784-2 - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - Device profile CoE, CiA DS-406 SSI - Interface - Equipment Optional interface - SSI-Clock input Optocoupler
