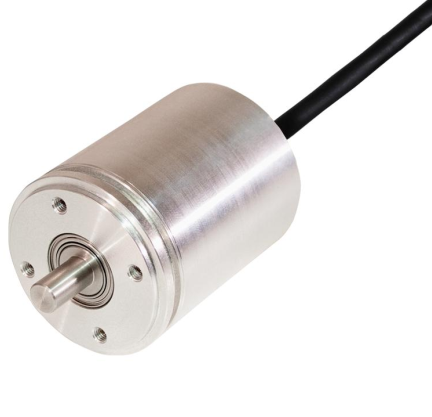

TR-Electronic CMV36M*4096/4096 CO 6GL/10,8 Absolute Encoder
Absolute-Encoder CMV36 – CO
(C) Compact Encoder, (V) Solid shaft, CANopen
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
Technical data for CMV36M-00016
NO.OF STEPS/REV 4.096,000 NO. OF REVOLUTIONS 4.096,000 INTERFACE CANOPEN CODE BINARY SUPPLY VOLTAGE 8,5-30V CONNECTOR-POSITION 1X M6 AXIAL MATING PLUG NO cable length (m) 2,000 M SHAFT EXECUTION (V) Solid shaft SHAFT TYPE 6GL/10,8 OPERATING TEMPERATURE -40+70°C PROTECTION Class IP54SHAFT/IP67HOUSING OPTIONS ENC 250KBAUD ABSCHLUSSWIDERSTAND NEIN ADRESSE 1 PINOUT NO. 10426
General data for K-CMV36-CO-1
Nominal voltage - Specific value 24 VDC - Limit values, min/max 8.5/30 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Device design - Type Single-/Multi-Turn Total resolution <= 28 Bit Number of steps per revolution <= 4096 Number of revolutions <= 65536 Accuracy ± 0,7 ° CANopen - Interface - CANopen EN 50325-4 - Bus connection ISO 11898-1, ISO 11898-2 - CAN Specification 2.0 A 11-Bit Identifier - Device-Profile for Encoder CiA DS406 - Layer Setting Services, LSS CiA DS305 Transmission rate - Specific value 20, 250, 500, 1000 kbit/s - Adjustability via LSS service Parameter/Function, changeable Resolution Download, EDS file Firmware update Node-ID Preset parameter Transmission rate Counting direction Type of parametrization programmable Programming - Tool Fieldbus-Device
NO.OF STEPS/REV 4.096,000 NO. OF REVOLUTIONS 4.096,000 INTERFACE CANOPEN CODE BINARY SUPPLY VOLTAGE 8,5-30V CONNECTOR-POSITION 1X M6 AXIAL MATING PLUG NO cable length (m) 2,000 M SHAFT EXECUTION (V) Solid shaft SHAFT TYPE 6GL/10,8 OPERATING TEMPERATURE -40+70°C PROTECTION Class IP54SHAFT/IP67HOUSING OPTIONS ENC 250KBAUD ABSCHLUSSWIDERSTAND NEIN ADRESSE 1 PINOUT NO. 10426
General data for K-CMV36-CO-1
Nominal voltage - Specific value 24 VDC - Limit values, min/max 8.5/30 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Device design - Type Single-/Multi-Turn Total resolution <= 28 Bit Number of steps per revolution <= 4096 Number of revolutions <= 65536 Accuracy ± 0,7 ° CANopen - Interface - CANopen EN 50325-4 - Bus connection ISO 11898-1, ISO 11898-2 - CAN Specification 2.0 A 11-Bit Identifier - Device-Profile for Encoder CiA DS406 - Layer Setting Services, LSS CiA DS305 Transmission rate - Specific value 20, 250, 500, 1000 kbit/s - Adjustability via LSS service Parameter/Function, changeable Resolution Download, EDS file Firmware update Node-ID Preset parameter Transmission rate Counting direction Type of parametrization programmable Programming - Tool Fieldbus-Device
