Features:
Functional safety
Internal calculation (annulus)
Modular mechanical design
SIL2, PLd: Position Sensor
SIL3, PLe: Speed Sensor

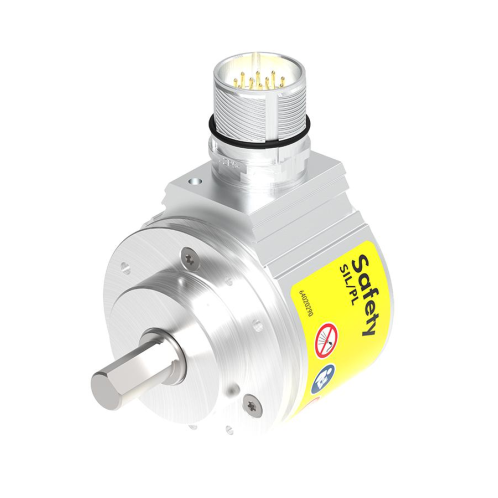

TR-Electronic IV58 + FS Incremental Encoder
Incremental-Encoder IV58 + FS
(I) Incremental, (V) Solid shaft, Incremental
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 10/30 VDC Nominal current, typically - Specific value 40 mA - Condition unloaded Supply - SELV/PELV IEC 60364-4-41 - In case of UL / CSA approval according to NEC Class 2 Signal form SIN/COS Signal form, alternative Square Incremental signals, square - Channels K1+, K1-, K2+, K2- - Phase position, electrically 90 ° Zero pulse, square - Channel (Channels) K0+, K0- - Number of revolutions 1x Incremental signals, SIN/COS SIN± COS±, 1 Vss - Output frequency <= 500 kHz - Load current <= 20 mA Zero pulse, SIN/COS - Channel (Channels) Ref+, RefImpulses, square wave 1024 2048 4096 Impulses, SIN/COS 1024 2048 4096 Accuracy - Applicable resolution 10 Bit, 11 Bit, 12 Bit - Safety-related + 2 Bit interpolated - Functional + 8 Bit interpolated Output stages - Factory setting TTL / HTL Output driver, TTL - Output level RS-422, 5 VDC - Load current <= 50 mA - Load current per Channel - Output frequency <= 100 kHz - Short-circuit proof yes Output driver, HTL - Short-circuit proof yes - Output level Push-Pull, supply voltage - Load current <= 50 mA - Load current per Channel - Output frequency <= 100 kHz Speed, electrically [1/min] (f-Cutoff/Imp. Rev) * 60 1/min Parameter/Function, changeable Number of pulses Output stage (TTL/HTL) Type of parametrization Factory setting Functional safety - SIL-Standardization DIN EN 61508 / DIN EN 62061 - SIL-Standardization DIN EN 61800-5-2 - SIL-Level SIL2 / SIL CL 2 - SIL-Level SIL3 / SIL CL 3 - PL-Standardization DIN EN ISO 13849-1 - Performance-Level (PL) PLe / Cat. 3 - Performance-Level (PL) PLd / Cat. 3 - Service life 20 Years
