Features:
Adjustment via set-inputs
Customer-specific solutions
Further interfaces available
Measures linear movements
Option: Exchangeable sensor
Perfect fit for cylinders
Pressure proof tube housing
Wear-free detection

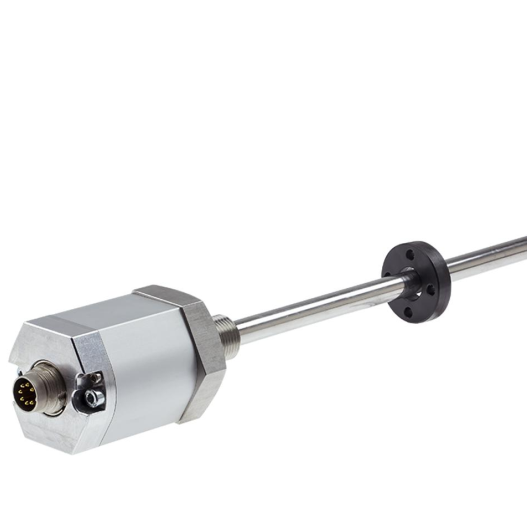

TR-Electronic LA46K (H) – A Linear Encoder
Linear-Transducer LA46K (H) – A
(L) Linear, (H) Hydraulic tube, (R) Tube
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Supply - Supply voltage 24 VDC ± 10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm Linearity deviation ± 0.10 mm <= 1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm <= 1500 mm 0.1 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 40 ppm/°C FS - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33 other on request Analog - Interface - Voltage/Current Factory setting - Resolution 16 Bit D/A converter - Voltage output 0…+10 VDC - Voltage output -10…+10 VDC - Load resistance (U) >= 0.68 kOhm - Current output 0…20 mA - Current output 4…20 mA - Load resistance (I) <= 500 Ohm Cycle time internal, <= 1.00 m 0.50 ms Cycle time internal, <= 1.50 m 0.75 ms Cycle time internal, <= 2.00 m 1.00 ms Cycle time internal, <= 3.00 m 2.00 ms Cycle time internal, > 3.00 m 4.00 ms External inputs - Set-Input 1 Analog initial point - Set-Input 2 Analog end point - Logic level "0“ < +2V, "1“ = Supply
Supply - Supply voltage 24 VDC ± 10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm Linearity deviation ± 0.10 mm <= 1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm <= 1500 mm 0.1 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 40 ppm/°C FS - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33 other on request Analog - Interface - Voltage/Current Factory setting - Resolution 16 Bit D/A converter - Voltage output 0…+10 VDC - Voltage output -10…+10 VDC - Load resistance (U) >= 0.68 kOhm - Current output 0…20 mA - Current output 4…20 mA - Load resistance (I) <= 500 Ohm Cycle time internal, <= 1.00 m 0.50 ms Cycle time internal, <= 1.50 m 0.75 ms Cycle time internal, <= 2.00 m 1.00 ms Cycle time internal, <= 3.00 m 2.00 ms Cycle time internal, > 3.00 m 4.00 ms External inputs - Set-Input 1 Analog initial point - Set-Input 2 Analog end point - Logic level "0“ < +2V, "1“ = Supply
