Features:
Customer-specific solutions
Flexible programming
Further interfaces available
Measures linear movements
Option: Exchangeable sensor
Perfect fit for cylinders
Position value – Adjustment
Pressure proof tube housing
Wear-free detection

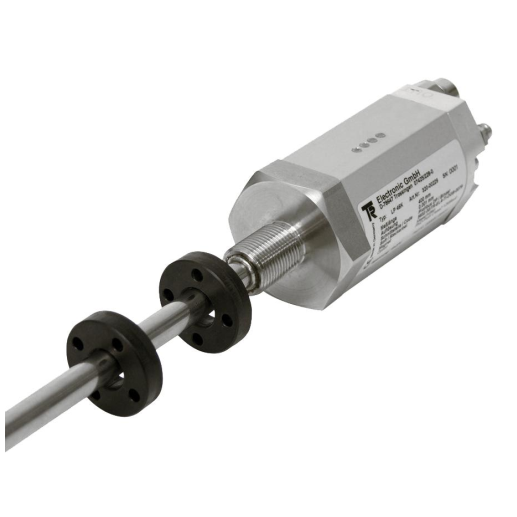

TR-Electronic LA46K (H) – EPN Linear Encoder
Linear-Transducer LA46K (H) – EPN
(L) Linear, (H) Hydraulic tube, (R) Tube
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 150 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm, 3 magnets 0.05 mm, 30 magnets Linearity deviation ± 0.10 mm <= 1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm <= 1500 mm 0.1 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33 other on request PROFINET IO - Interface - PROFINET IO – Device IEC 61158, IEC 61784-1 - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - PROFINET-Specification V2.2 - Conformance Class B - Real-Time-Classes Class 1, 2 (RT), Class 3 (IRT) - Media Redundancy Protocol, MRP yes, is supported Transmission rate - Specific value 10 MBit/s - Specific value 100 MBit/s Cycle time >= 1000 µs (IRT/RT) Parameter/Function, changeable Addressing Resolution Number of magnets Interpolation Preset parameter Position averaging Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 0.50 m 0.50 ms Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 2.00 m 2.00 ms Cycle time internal, <= 3.00 m 2.00 ms Cycle time internal, > 3.00 m 4.00 ms Optional Magnets - Number of magnets 3, 30 - Magnet - Minimum distance 80 mm
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 150 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm, 3 magnets 0.05 mm, 30 magnets Linearity deviation ± 0.10 mm <= 1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm <= 1500 mm 0.1 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33 other on request PROFINET IO - Interface - PROFINET IO – Device IEC 61158, IEC 61784-1 - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - PROFINET-Specification V2.2 - Conformance Class B - Real-Time-Classes Class 1, 2 (RT), Class 3 (IRT) - Media Redundancy Protocol, MRP yes, is supported Transmission rate - Specific value 10 MBit/s - Specific value 100 MBit/s Cycle time >= 1000 µs (IRT/RT) Parameter/Function, changeable Addressing Resolution Number of magnets Interpolation Preset parameter Position averaging Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 0.50 m 0.50 ms Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 2.00 m 2.00 ms Cycle time internal, <= 3.00 m 2.00 ms Cycle time internal, > 3.00 m 4.00 ms Optional Magnets - Number of magnets 3, 30 - Magnet - Minimum distance 80 mm
