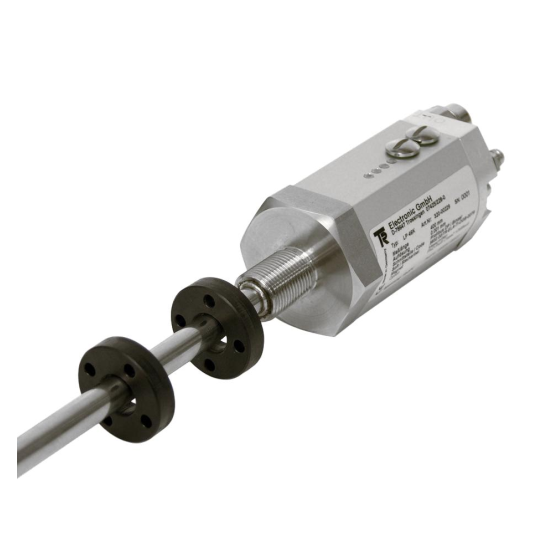

TR-Electronic LA46K (H) – PB Linear Encoder
Linear-Transducer LA46K (H) – PB
(L) Linear, (H) Hydraulic tube, (R) Tube
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 150 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm, 3 magnets 0.05 mm, 30 magnets Linearity deviation ± 0.10 mm <= 1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm <= 1500 mm 0.1 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33 other on request PROFIBUS - Interface - PROFIBUS-DP V0 IEC 61158, IEC 61784 - PNO Encoder-Profile Class 1 and 2 Transmission rate - Specific value 9.6…12000 kbit/s Parameter/Function, changeable Resolution Preset parameter Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 1.50 m 1.50 ms Cycle time internal, <= 2.00 m 2.00 ms Cycle time internal, <= 2.50 m 2.50 ms Cycle time internal, <= 3.00 m 3.00 ms Cycle time internal, > 3.00 m 4.00 ms Optional Magnets - Number of magnets 3, 30 - Magnet - Minimum distance 80 mm
