Features:
Cascadable, <= 20 m length
Customer-specific solutions
Flexible programming
Further interfaces available
Measures linear movements
Position value - Adjustment
Wear-free detection

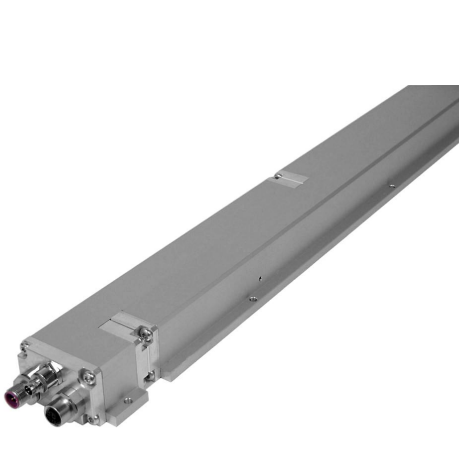

TR-Electronic LMC55 – PB Linear Encoder
Linear-Transducer LMC55 – PB
(L) Linear, (C) Cascadable, Profibus
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load - Master system < 60 mA - Single component < 90 mA Measuring principle magnetostrictive Measuring length, standard 5…20 m, complete system 2 m, Single component End component, variable Resolution 0.05 mm Linearity deviation < 0.02 % ± 0.20 mm / Module Reproducibility 0.05 mm Hysteresis 0.1 mm Characteristics - Validity using original TR Magnets Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet T1-S5520 other on request PROFIBUS - Interface - PROFIBUS-DP V0 IEC 61158, IEC 61784 Transmission rate - Specific value 9.6…12000 kbit/s Parameter/Function, changeable Resolution Number of magnets Preset parameter Counting direction Cycle time, internal >= 2 ms Optional Magnets - Number of magnets 30 - Magnet - Minimum distance 100 mm
