Features:
Customer-specific solutions
Flexible programming
Further interfaces available
Measures linear movements
Position value – Adjustment
Profile housing
Simple integration
Wear-free detection

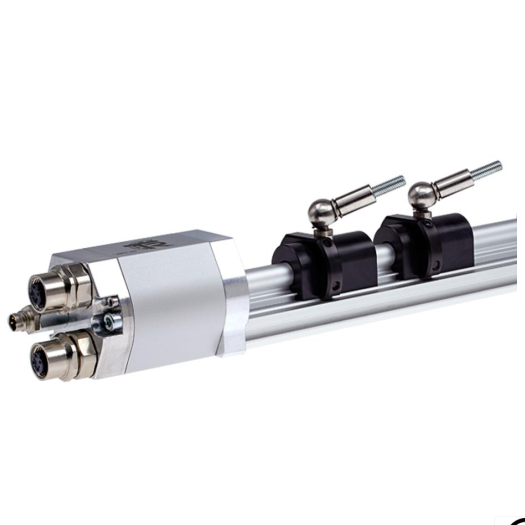

TR-Electronic LMPI46 – CO Linear Encoder
Linear-Transducer LMPI46 – CO
(L) Linear, (P) Profile, CANopen
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 150 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm Linearity deviation typically ± 15 µm ± 0.03 mm < 1000 mm ± 0.1 mm >= 1000…1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis typically < 6 µm < 0.015 mm < 1000 mm < 0.1 mm >= 1000…1500 mm < 0.15 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet Slider other on request CANopen - Interface - CANopen EN 50325-4 - Bus connection ISO 11898-1, ISO 11898-2 - CAN Specification 2.0 A 11-Bit Identifier - Device-Profile for Encoder CiA DS406 - Layer Setting Services, LSS CiA DS305 - Layer Management Services, LMT CiA DS205-1, DS205-2 Transmission rate - Specific value 10, 20, 50, 100, 125, 250, 500 - Specific value 800, 1000 kbit/s - Specific value Default: 500 kbit/s - Adjustability by means of DIP-switches - Adjustability via LSS service, LMT service Parameter/Function, changeable Resolution Node-ID Preset parameter Transmission rate Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 1.50 m 1.50 ms Cycle time internal, <= 2.00 m 2.00 ms Cycle time internal, <= 2.50 m 2.50 ms Cycle time internal, > 2.50 m 3.00 ms Optional Magnets - Number of magnets 3 - Magnet - Minimum distance 80 mm
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 150 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm Linearity deviation typically ± 15 µm ± 0.03 mm < 1000 mm ± 0.1 mm >= 1000…1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis typically < 6 µm < 0.015 mm < 1000 mm < 0.1 mm >= 1000…1500 mm < 0.15 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet Slider other on request CANopen - Interface - CANopen EN 50325-4 - Bus connection ISO 11898-1, ISO 11898-2 - CAN Specification 2.0 A 11-Bit Identifier - Device-Profile for Encoder CiA DS406 - Layer Setting Services, LSS CiA DS305 - Layer Management Services, LMT CiA DS205-1, DS205-2 Transmission rate - Specific value 10, 20, 50, 100, 125, 250, 500 - Specific value 800, 1000 kbit/s - Specific value Default: 500 kbit/s - Adjustability by means of DIP-switches - Adjustability via LSS service, LMT service Parameter/Function, changeable Resolution Node-ID Preset parameter Transmission rate Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 1.50 m 1.50 ms Cycle time internal, <= 2.00 m 2.00 ms Cycle time internal, <= 2.50 m 2.50 ms Cycle time internal, > 2.50 m 3.00 ms Optional Magnets - Number of magnets 3 - Magnet - Minimum distance 80 mm
