Features:
Adjustment via set-inputs
Ex-Protection Zone 2/22
Further interfaces available
Measures linear movements
Perfect fit for cylinders
Pressure proof tube housing
Wear-free detection

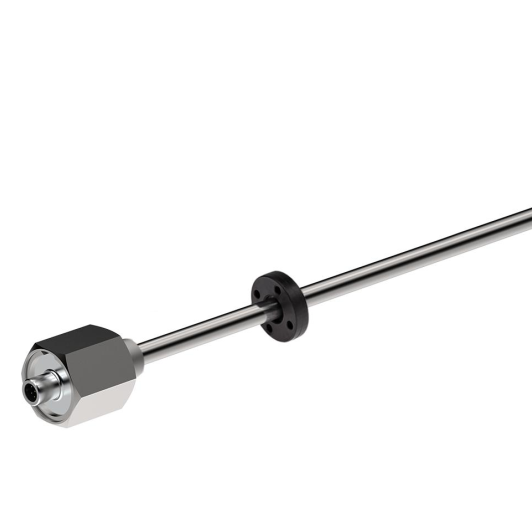

TR-Electronic LMRS34 – Analog Ex Linear Encoder
Linear-Transducer LMRS34 – Analog Ex
(A) ATEX, (L) Linear, (R) Tube
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 21.6/26.4 VDC Supply - SELV/PELV IEC 60364-4-41 Power consumption <= 3.5 W Measuring principle magnetostrictive Measuring length, standard 50…3000 mm Linearity deviation <= ± 0.015 % FS (min ± 50 µm) Reproducibility <= ± 0.005 % FS (min ± 10 µm) Characteristics - Validity using original TR Magnets Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33, Standard other on request Analog - Interface - Voltage/Current Factory setting - Resolution 12 Bit D/A converter - Voltage output 0…+10 VDC - Load resistance (U) >= 1 kOhm - Current output 4…20 mA - Load resistance (I) <= 500 Ohm - other output level on request External inputs - Set-Input 1 Analog initial and end point - Logic level "0“ < +2V, "1“ = Supply
Nominal voltage - Specific value 24 VDC - Limit values, min/max 21.6/26.4 VDC Supply - SELV/PELV IEC 60364-4-41 Power consumption <= 3.5 W Measuring principle magnetostrictive Measuring length, standard 50…3000 mm Linearity deviation <= ± 0.015 % FS (min ± 50 µm) Reproducibility <= ± 0.005 % FS (min ± 10 µm) Characteristics - Validity using original TR Magnets Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T4-M33, Standard other on request Analog - Interface - Voltage/Current Factory setting - Resolution 12 Bit D/A converter - Voltage output 0…+10 VDC - Load resistance (U) >= 1 kOhm - Current output 4…20 mA - Load resistance (I) <= 500 Ohm - other output level on request External inputs - Set-Input 1 Analog initial and end point - Logic level "0“ < +2V, "1“ = Supply
