Features:
Flexible programming
Further interfaces available
Measures linear movements
Perfect fit for cylinders
Position value – Adjustment
Pressure proof tube housing
Wear-free detection

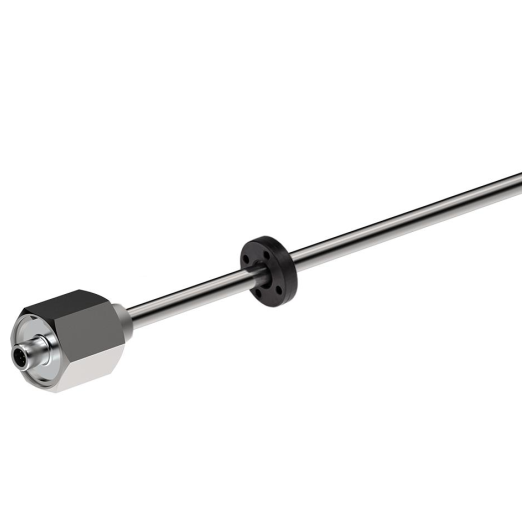

TR-Electronic LMRS34 – IO-Link Linear Encoder
Linear-Transducer LMRS34 – IO-Link
(L) Linear, (R) Tube, IO-Link
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 50…3000 mm Resolution 0.01 mm Linearity deviation <= ± 0.015 % FS (min ± 50 µm) Reproducibility <= ± 0.005 % FS (min ± 10 µm) Characteristics - Validity using original TR Magnets Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Cr/Ni - alloy Rod end mounting Option Magnet T1-M17.4 T4-M33, Standard other on request IO-Link - Interface - IO-Link IEC 61131-9 - Communication Point-to-Point Connection - Data transmission 3-wire, unshielded - Port class Type A - IO-Link specification V1.1 - Process data input 4-Bytes position data - Process data input 2-Bytes velocity data - Cycle time >= 1 ms Transmission rate - Specific value COM 3: 230.4 kbit/s Parameter/Function, changeable Resolution Operating hours counter Preset parameter Temperature parameter Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 3.00 m 2.00 ms
