Features:
Customer-specific solutions
Further interfaces available
Measures linear movements
Profile housing
Simple integration
Wear-free detection

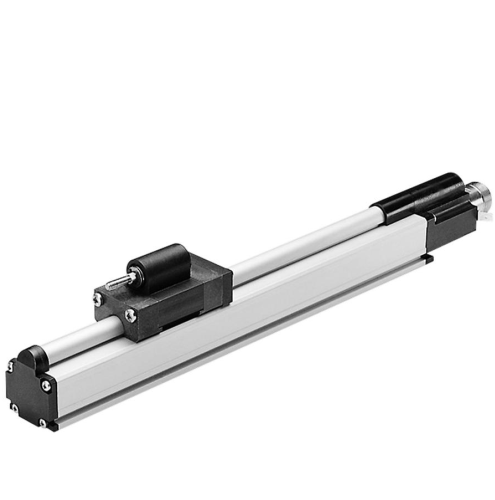

TR-Electronic LP38 – Start/Stop Linear Encoder
Linear-Transducer LP38 – Start/Stop
(L) Linear, (P) Profile, Start-Stop
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Supply - Supply voltage 15…27 VDC - Optional ± 15 VDC - Optional 24 VDC Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 150…3000 mm, in steps Resolution according to evaluation unit Linearity deviation < 0.05 % Reproducibility 0.01 mm Hysteresis 0.1 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet T4-U3820 other on request Start-Stop - Interface - Cable length, RS-422 <= 500 m - External evaluation unit TR-Modules, e.g. AK-8 - External evaluation unit SIEMENS IP 241 - External evaluation unit PHILIPS 9404 4620 0301 - External evaluation unit Bernecker + Rainer - External evaluation unit Harms and Wende Cycle time, internal see dimensional drawing External inputs - Start-Signal, RS422 Differential input External outputs - Stop-Signal, RS422 Differential output
Supply - Supply voltage 15…27 VDC - Optional ± 15 VDC - Optional 24 VDC Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 150…3000 mm, in steps Resolution according to evaluation unit Linearity deviation < 0.05 % Reproducibility 0.01 mm Hysteresis 0.1 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet T4-U3820 other on request Start-Stop - Interface - Cable length, RS-422 <= 500 m - External evaluation unit TR-Modules, e.g. AK-8 - External evaluation unit SIEMENS IP 241 - External evaluation unit PHILIPS 9404 4620 0301 - External evaluation unit Bernecker + Rainer - External evaluation unit Harms and Wende Cycle time, internal see dimensional drawing External inputs - Start-Signal, RS422 Differential input External outputs - Stop-Signal, RS422 Differential output
