Features:
Customer-specific solutions
Flexible programming
Further interfaces available
Measures linear movements
Position value – Adjustment
Profile housing
Simple integration
Wear-free detection

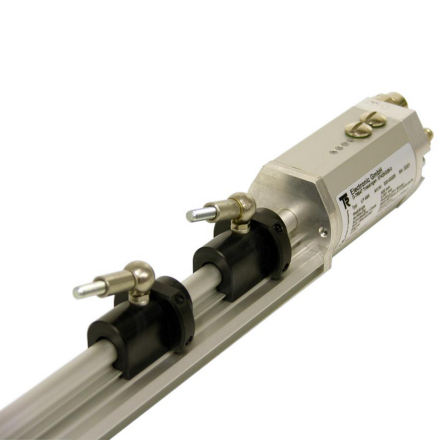

TR-Electronic LP46 – EPL Linear Encoder
Linear-Transducer LP46 – EPL
(L) Linear, (P) Profile, POWERLINK
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Supply - Supply voltage 24 VDC, -20…+10 % Current consumption no load <= 250 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm Linearity deviation ± 0.10 mm <= 1500 mm ± 0.15 mm > 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm <= 1500 mm 0.1 mm > 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 8 µm/°C <= 500 mm < 15 ppm/°C FS > 500 mm - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet Slider other on request POWERLINK - Interface - POWERLINK IEC 61784-2, IEC 61158 ff - Physical Layer Fast Ethernet, ISO/IEC 8802-3 - Device profile CoE, CiA DS-406 Transmission rate - Specific value 100 MBit/s Cycle time >= 400 µs Parameter/Function, changeable Resolution Interpolation Preset parameter Position averaging Counting direction Velocity parameter Type of parametrization programmable Programming - Tool Fieldbus-Device TR-Soft: TRWinProg Cycle time internal, <= 0.50 m 0.50 ms Cycle time internal, <= 1.00 m 1.00 ms Cycle time internal, <= 2.00 m 1.50 ms Optional Magnets - Number of magnets 3 - Magnet - Minimum distance 80 mm
