Features:
Customer-specific solutions
Flexible programming
Further interfaces available
Modular product line
Redundant scanning system
Rugged construction

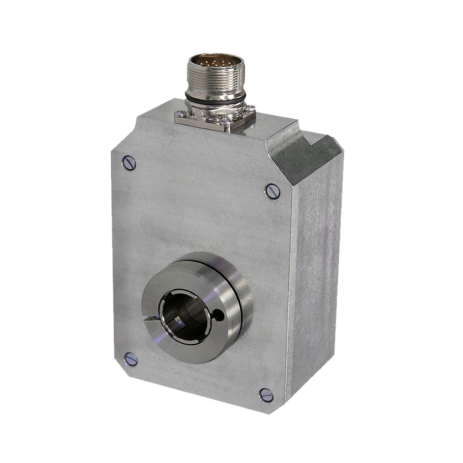

TR-Electronic QDH80M – SSI / INK Absolute Encoder
Absolute-Encoder QDH80M – SSI / INK
(Q) Q-Bic, (H) Hollow shaft, SSI
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General data
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/27 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Device design - Type Multi-Turn - Redundant scanning system yes, double Total resolution <= 31 Bit Number of steps per revolution <= 8192 Number of revolutions <= 256000 Output capacity <= 30 Bit Accuracy ± 0.4 ° System 1/2 SSI - Interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 20 µs Incremental - Interface - Equipment Standard interface - Signal form Square wave - Signal form, alternative SIN / COS - Incremental signals, square K1± K2± K0± - Incremental signals, SIN/COS SIN± COS±, 1 Vss - Impulses, square wave 4096 - Impulses, SIN/COS - Output driver, TTL RS-422, 5 VDC Cycle time 250 µs Parameter/Function, changeable Resolution Output code Output format Number of data bits Preset parameter Counting direction Type of parametrization programmable Programming - Tool TR-Soft: TRWinProg External inputs - F/R Count direction - Preset electronic adjustment - Logic level "0“ < +2V, "1“ = Supply Maximum Speed, mechanically <= 3000 1/min Shaft load, axial/radial Own mass Bearing life time >= 3.9E+10 revolutions Bearing life time - Parameter - Speed 3000 1/min - Operating temperature 60 °C Shaft type - Shaft diameter [mm] 14 - Shaft diameter [mm] 16 - Shaft diameter [mm] 20 - Shaft diameter [mm] 24 - Shaft diameter [mm] 25 Angular acceleration <= 10E+4 rad/s² Moment of inertia, typically 57.2E-6 kg m² Mass, typically 1.3 kg Optional Parallel Outputs - Parallel outputs 8 outputs - Output current 50 mA per output - short circuit protected yes - Output driver, HTL Push-Pull, 11…27 VDC
Nominal voltage - Specific value 24 VDC - Limit values, min/max 11/27 VDC Nominal current, typically - Specific value 80 mA - Condition unloaded Device design - Type Multi-Turn - Redundant scanning system yes, double Total resolution <= 31 Bit Number of steps per revolution <= 8192 Number of revolutions <= 256000 Output capacity <= 30 Bit Accuracy ± 0.4 ° System 1/2 SSI - Interface - SSI-Clock input Optocoupler - SSI-Data output RS-422, 2-wire - SSI-Clock frequency 80…1000 kHz - SSI-Mono time, typically 20 µs Incremental - Interface - Equipment Standard interface - Signal form Square wave - Signal form, alternative SIN / COS - Incremental signals, square K1± K2± K0± - Incremental signals, SIN/COS SIN± COS±, 1 Vss - Impulses, square wave 4096 - Impulses, SIN/COS - Output driver, TTL RS-422, 5 VDC Cycle time 250 µs Parameter/Function, changeable Resolution Output code Output format Number of data bits Preset parameter Counting direction Type of parametrization programmable Programming - Tool TR-Soft: TRWinProg External inputs - F/R Count direction - Preset electronic adjustment - Logic level "0“ < +2V, "1“ = Supply Maximum Speed, mechanically <= 3000 1/min Shaft load, axial/radial Own mass Bearing life time >= 3.9E+10 revolutions Bearing life time - Parameter - Speed 3000 1/min - Operating temperature 60 °C Shaft type - Shaft diameter [mm] 14 - Shaft diameter [mm] 16 - Shaft diameter [mm] 20 - Shaft diameter [mm] 24 - Shaft diameter [mm] 25 Angular acceleration <= 10E+4 rad/s² Moment of inertia, typically 57.2E-6 kg m² Mass, typically 1.3 kg Optional Parallel Outputs - Parallel outputs 8 outputs - Output current 50 mA per output - short circuit protected yes - Output driver, HTL Push-Pull, 11…27 VDC
