Features:
Backlash-free encoder coupling
Flexible mount of attachments
Heavy-Duty applications
Life time <= 1 mio. cycles
Very high measuring accuracy
Very high working reliability

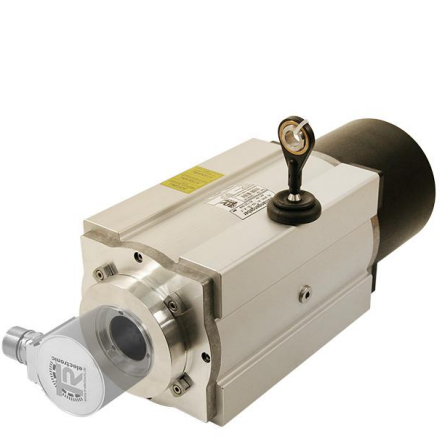

TR-Electronic SL3040 Draw Wire
Draw-Wire SL3040, 40.0 m, 190 mm
(C) Compact Encoder, (I) Incremental, (W) Wire
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Order number(s) 40-720-014 Housing design 190 mm Housing material Aluminium anodized Measuring length 40.00 m Gear ratio 491.5 mm/Umdr. Note: Observe name plate! Accuracy, gear ratio ± 0.05 % Diameter, measuring wire 1.35 mm Material, measuring wire Stainless steel, 1.4401 Wire outlet angle <= ±3 ° Position of wire, acc. drawing right Linearity ± 0.05 % related to the measuring value Reproducibility 0.01 % related to the measuring value Adjusting speed <= 4 m/s Spring retraction force 18…37 N Load cycles, typically <= 1 000 000 Options - Cold-grease -30…+80 °C - Attachment Bellow (dirt wiper) - Attachment Brushes (dust protection) - Wire hook fixed - Wire hook Ball joint - Guide pulley one-way, wire outlet linear - Guide pulley two-way, change in direction Mass, typically 21 kg
