Features:
Easy mounting (slot nuts)
Guide pulley, mountable
High working reliability
Robust Al-alloy profile body
Standard applications

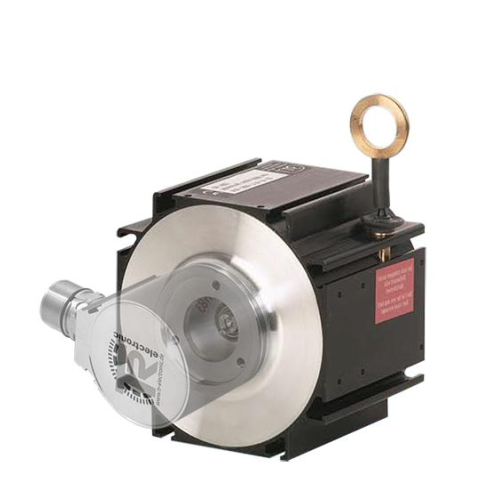

TR-Electronic WDS-2500-P85 Draw Wire
Draw-Wire WDS-2500-P85, 2.5 m, 85 mm
(C) Compact Encoder, (I) Incremental, (W) Wire
Description
Additional information
| Brand |
|---|
About TR-Electronic
TR-Electronic manufactures and develops measurement and control systems for automation technology. TR-Electronic supplies the right rotary encoders, linear encoders and drives – as high-quality standard products or customized solutions for different types of applications. The specialists, their ideas, and development knowledge in TR-Electronic are the foundation of creative products and expanding global success. TR-Electronic product range has a competitive advantage in terms of functionality, quality, and cost effectiveness.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
General Data
Order number(s) 40-730-001 (Standard) 40-730-002 (Guide pulley) 40-730-014 (Drain boring) Housing design 85 mm Housing material Aluminium anodized Measuring length 2.50 m Gear ratio 199.92 mm/rev. Note: Observe name plate! Accuracy, gear ratio ± 0.20 % Diameter, measuring wire 1.20 mm Material, measuring wire Stainless steel, PA coated Wire outlet angle <= ±3 ° Linearity ± 0.035 % related to the measuring range Adjusting speed <= 4 m/s Wire acceleration, typically 49 m/s² Spring retraction force 6…16 N Options - Guide pulley one-way, wire outlet linear - With drain boring yes
