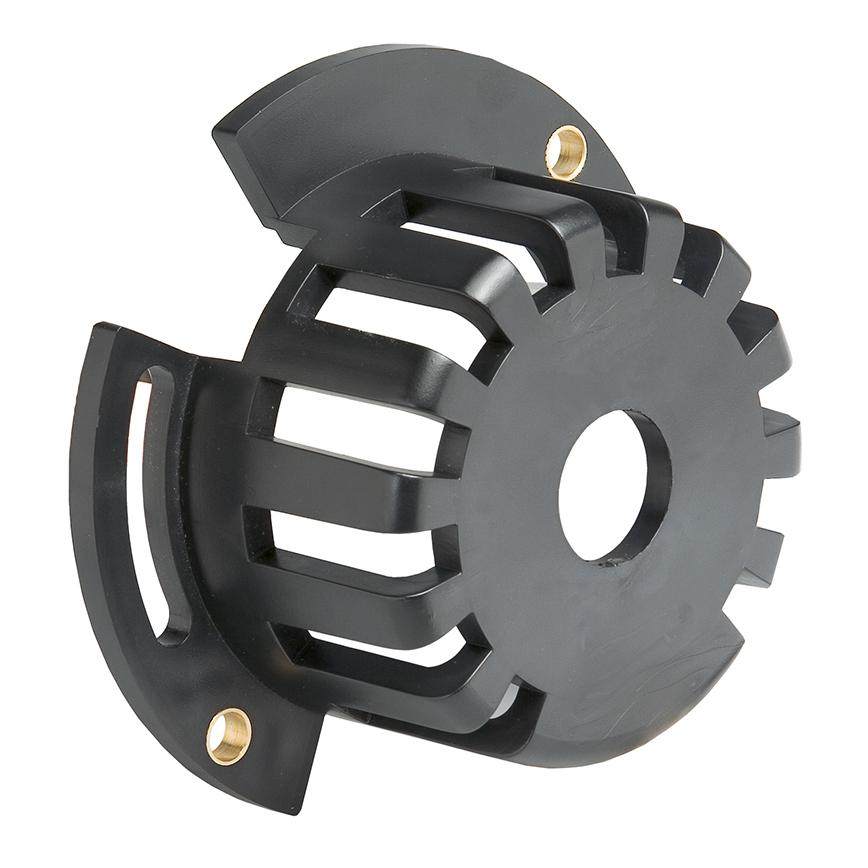

This high-impact plastic cage protects hollow-shaft style encoders from mechanical damage during handling and installation. It is used either withh the HS25 or the HS35 encoder and has a side cutout to allow for tether arm placement. It accepts a NEMA 56 standard motor face and can be used with either a through shaft or blind shaft style of encoder. The 26068-003 protective cover assembly comes with a clip, but no bolts and the 26068-001 protective cover assembly includes the 3/8-16×3/4 bolt.
BEI Sensors Accessory 26068-00X
Mounting/Adapters Protective Cover for Hollow Shaft Encoders 26068-00X
Description
Additional information
| Brand |
|---|
About Bei Sensors
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
| Item No. | Description | Part No. | 26068-001 with encoder/QTY. |
| 1 | Protective Cover, HS25 & HS35 | 23145-001 | 1 |
| 2 | IP50 Clip | 38521-001 | 1 |
| 3 | Washer, Lock, Int., 3/8 | 33032-001 | 3 |
| 4 | Washer, Flat, 3/8 | MS15795-814 | 3 |
| 5 | Hex Head Cap Screw, 3/8-16X.75 | 330HHCS3753/8163/4 | 3 |
