BEI Sensors Accessory M9105/XXX —

Description

This Magnet Holder System simplifies the installation of the 8810/013 Rare Earth Magnet used with ACW4 or TCW4 sensors. Options include front mount, female and male magnet supports in various sizes.

Features

The 8810/013 Rare Earth Magnet allows users to build their own magnet holder assembly for use with ACW4 and TCW4 sensors.
The M9105 series of magnet holders are designed to make mounting and alignment of the magnet to its sensor assembly easy to accomplish.

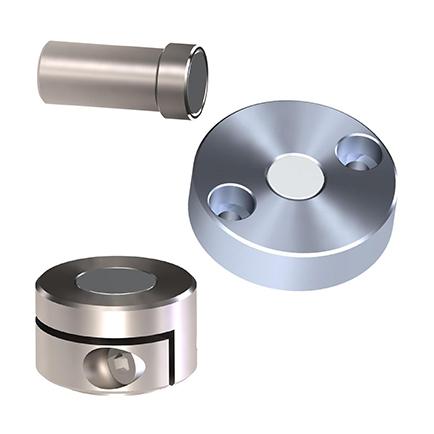

Three different mounting systems are available.
Mount directly to the shaft with a variety of shaft diameters such as 6mm with female magnet support M1905/K06
Mount directly into a 10mm bore with male magnet support M9105/M10-01 or use a two-hole front mount magnet support M9105/F26

Additional information

Brand	Bei Sensors

About Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE

To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.

Specification
