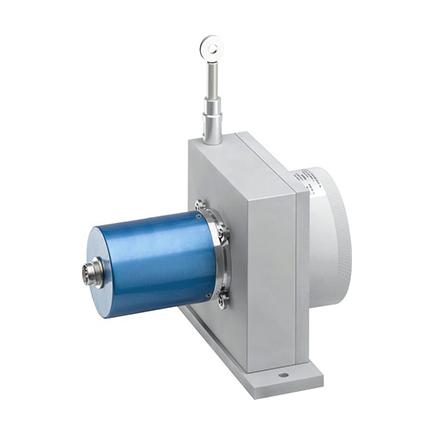

BEI Sensors CD115 Analog Draw Wire
CD115 Analog Draw Wire
Additional information
About Bei Sensors
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
| Measurement range | 0 up to 3000 mm |
| Output signal | 0...10V (galvanic isolation) 4...20mA current loop 4...20mA current generator (galvanic isolation) 0...20mA current generator (galvanic isolation) |
| Resolution | Quasi infinite (depends on the operating system) |
| Material | Body and cover - aluminum (RohS) Measuring cable – Stainless steel |
| Cable diameter | 0,61 mm |
| Detection element | Precision potentiometer |
| Connection | Male connector M16 – DIN 8 pin Male connector M12 – 4 pin PVC cable – 4 wires |
| Standard linearity | +/- 0,15% f.s. +/- 0,10% f.s. (optional) |
| Protection class | IP54 (option IP67) |
| Max. Velocity | 10 m/s |
| Max. Acceleration | 7 m/s2 (before cable deformation) |
| Weight | ≈ 2000 g |
| Operating temperature | -20° to +80°C |
| Storage temperature | -30° to +80°C |
