BEI Sensors CD150 Potentiometer Draw Wire

Description

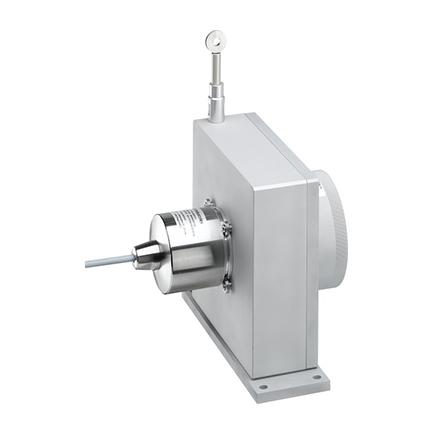

The CD150 Potentiometric is a Draw Wire sensor that utilizes a precision potentiometer output to indicate linear motion of the draw wire. Utilizing a spring loaded rotary cable real with a stainless steel measuring cable and an aluminum enclosure, this sensor is well suited to the industrial environments that it is intended for. Dimensions are approximately 180 X 190 X 220 mm and weight is ~ 3000 g.

Features

Range up to 6000 mm
Standard linearity of 0.15%
Connector and cable output options available
IP54 rated with IP67 option
Built-in cable cleaning brush option available
Well suited for dusty, hot or wet environments

Additional information

Brand	Bei Sensors

About Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE

To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.

Specification

Measurement range	0 up to 6000 mm
Output signal	1kΩ (other values on demand)
Resolution	Quasi infinite (depends on the operating system)
Material	Body and cover - Aluminium (RohS) Measuring cable – Stainless stee
Cable diameter	0,60 mm
Detection element	Precision potentiometer
Connection	Male connector M16 – DIN 3 pin Male connector M12 – 4 pin PVC cable – 4 wires
Standard linearity	+/- 0,15% f.s. +/- 0,10% f.s. (optional)
Protection class	IP54 (option IP67)
Max. Velocity	10 m/s
Max. Acceleration	5 m/s² (before cable deformation)
Weight	≈ 3000 g
Operating temperature	-20° to +80°C
Storage temperature	-30° to +80°C
