BEI Sensors T Series Industrial Inclinometer Analog

Description

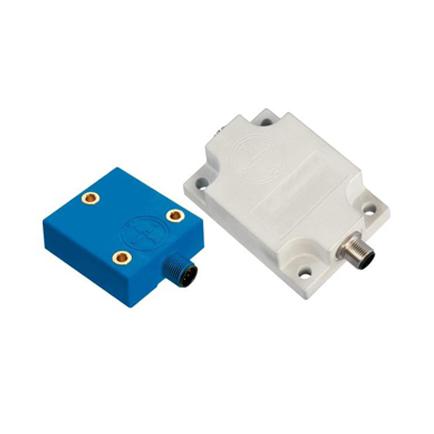

T-Series industrial inclinometers are compact high performance sensors used to determine inclination in roll and pitch axes with excellent precision and at a high value. Whether using a molded plastic housing or an AW6082-T6 aluminum alloy housing, both versions offer mechanical stability and an encapsulated sensor. Both have a high environmental protection rating making them ideal for measuring tilt in harsh industrial environments.

Features

Dual Axis Measurement Range up to ±60°
Option for a Single Axis Measurement Range of 360°
High Resolution: 0.01°
High Accuracy: 0.1°
Glass Fiber Reinforced Plastic Housing available
Factory Calibrated Linearity
Temperature Compensated for Bias and Sensitivity
Analog Interface: Voltage, Current
Highest Protection Class: IP69K, IP68

Additional information

Brand	Bei Sensors

About Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE

To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.

Specification

Model		T- M2 (or P2)- (Range)			T-M1 (or P1) - 360
		15	30	60
Measurement Range		± 15°	± 30°	± 60	360°
Maximal Loads		2 (Standard), 1 optional		1
Analog Interface	Voltage	0.5 to 4.5 V, 0° = 2.5 V Load ≥ 10 KΩ with 12 V DC		0.5 to 4.5 V, 0° = 0.5 V Load ≥ 10 KΩ with 12 V DC
	Current	4 mA to 20 mA, 0° = 12 mA Load ≤ 270 Ω¹		4 mA to 20 mA, 0° = 4 mA Load ≤ 270 Ω¹
Resolution		0.01°
Accuracy (T = -10 °C to +40 °C)²		0.1°
Sensor Response Time		10 ms (Without Filter)
Recommended Measurement Rate		Up to 10 Hz
Supply Voltage³		10 to 30 V DC (Absolute Maximum Ratings) for Voltage Analog Interface 15 to 30 V DC (Absolute Maximum Ratings) for Current Analog Interface
Power Consumption		≤ 0.7 W
EMC		Emitted Interference: EN 61000-6-4
		Noise Immunity: EN 61000-6-2
Connection		Connector Output, 8 Pin M12 male (A-coded)
