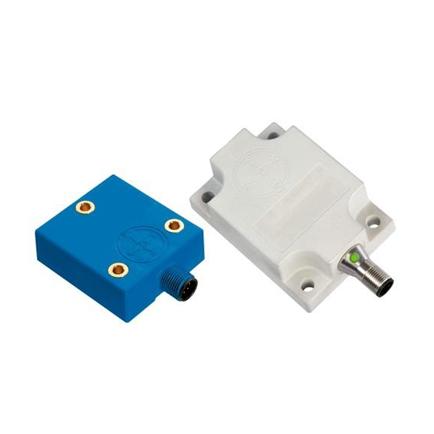

BEI Sensors T Series Industrial Inclinometer CANopen

Description

T-Series industrial inclinometers are compact high performance sensors used to determine inclination in roll and pitch axes with excellent precision and at a high value. Whether using a molded plastic housing or an AW6082-T6 aluminum alloy housing, both versions offer mechanical stability and an encapsulated sensor. Both have a high environmental protection rating making them ideal for measuring tilt in harsh industrial environments.

Features

Dual Axis Measurement Range up to ±60°
Option for a Single Axis Measurement Range of 360°
High Resolution: 0.01°
High Accuracy: 0.1°
Glass Fiber Reinforced Plastic Housing available
Factory Calibrated Linearity
Temperature Compensated for Bias and Sensitivity
Interface: CANopen
Highest Protection Class: IP69K, IP68

Additional information

Brand	Bei Sensors

About Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE

To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.

Specification

Model	T- M2 (or P2)- (Range)			T-M1 (or P1) - 360
	15	30	60
Measurement Range	± 15°	± 30°	± 60	360°
Number of Axes	2 (Standard), 1 optional		1
Resolution	0.01°
Accuracy (T = -10 °C to +40 °C)	0.1°
Sensor Response Time	10 ms (Without Filter)
Recommended Measurement Rate	Up to 10 Hz
Interface	CANopen (In Conformance to DS410) Transceiver According ISO 11898, Galvanically Isolated by Opto-Couplers
Transmission Rate	Adjustable: Max. 1 MBaud (Factory Setting : 125 kBaud)
Addressing	Programmable Node-id from 1 to 127 (Factory Setting: 1)
Supply Voltage	10 to 30 V DC (Absolute Maximum Ratings)
Current Consumption	Max. 57 mA at 10 V DC; Max. 53 mA at 24 V DC
EMC	Emitted Interference: EN 61000-6-4
Current Consumption	Noise Immunity: EN 61000-6-2
Connector Cable	5 Pin M5 male (A-coded)
	Ø 7.1 mm [0.28 in] Polyurethane: 4 x 2 x 0.34 mm² [AWG 22]
