MODELS 1202 / 1302 / 1502 / 1602 / 1702 / 1802 INDUSTRIAL MODELS 1232 / 1632
Features
- Bushing mount / Sleeve Bearing
- 7/8” to 3” Diameter Bushing mount
- Wirewound Single-Turn Precision Potentiometers

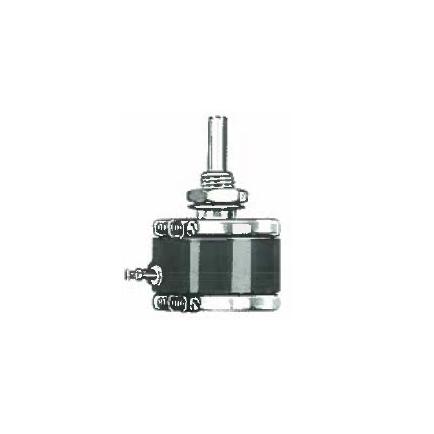

BEI Sensors 1202-1802 Series Rotary Motion Precision Sensor
1202-1802 Series Rotary Motion Precision Sensor
Description
Additional information
| Brand |
|---|
About Bei Sensors
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
| Description | 1202 | 1302 | 1502 | 1602 | 1702 | 1802 | 1232 | 1632 |
| Actual Electrical Travel | 354°±2° | 354°±2° | 354°±2° | 354°±1° | 354°±1° | 358°±1° | 354°±2° | 354°±2° |
| Normal Resistance Range | 100Ω to 25K | 100Ω to 30K | 100Ω to 50K | 100Ω to 60K | 100Ω to 75K | 100Ω to 100K | 100Ω to 25K | 100Ω to 60K |
| Extended Resistance Range | 15Ω to 75K | 25Ω to 100K | 25Ω to 125K | 25Ω to 150K | 25Ω to 200K | 25Ω to 250K | 15Ω to 50K | 25Ω to 100K |
| Resistance Tolerance: Standard % | ±3 | ±5 | ||||||
| Best Practical % | ±1 | |||||||
| Power Rating At 70°C, Derating to 0 At 125°C (Watts) | 1.25 | 2.0 | 3.0 | 4.0 | 5.0 | 7.0 | 1.25 | 4.0 |
| Linearity, Independent, Tolerance, Standard % | ±0.5 | ±0.4 | ±0.3 | ±0.25 | ±0.2 | ±0.15 | ±0.5 | ±0.3 |
| Best Practical % | ±0.2 | ±0.15 | ±0.12 | ±0.09 | ±0.08 | ±0.05 | ±0.25 | ±0.15 |
| Equivalent Noise Resistance (ENR) Max. (Ohms) | 100 | |||||||
| End Voltage Max. (% Of Total Applied Voltage) | Within linearity tolerance | |||||||
| Insulation Resistance At 500 VDC, Min. (Megohms) | 1000 | |||||||
| Dielectric Withstanding Voltage (Volts RMS) | 1000 | |||||||
| Max. Applied Voltage(Volts DC) | 400 | |||||||
| Temperature Coefficient Of Potentiometer, Max. % / °C | ±.007 | |||||||
