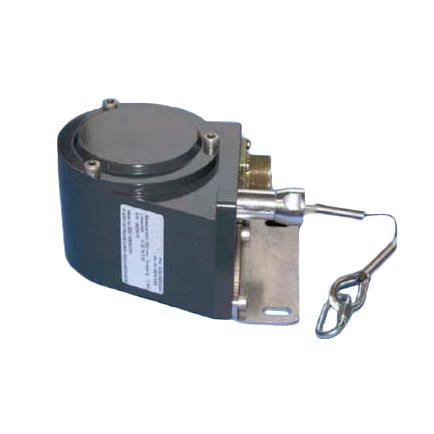

BEI Sensors CDB Range Draw Wire Sensor

Description

CDB Potentiometer draw-wire sensor offer a simple and cost effective solution to measure linear movement.

Features

Industrial solution,
High accuracy,
Adapted to harshest environments,
Compact conception,
Friendly user installation
High Ingress Protection : IP67,
Measuring range from 0 to 700mm,
Recyclable noble material use (RoHS),
Usinage dans la masse,
Drum mounted on ball bearings,
Used rotary sensor: multi-turn potentiometer,
Almost-infinite resolution (in function of subsequent electronic).

Additional information

Brand	Bei Sensors

About Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE

To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.

Specification

Range		0 to 700mm
Cable Material		Stainless Steel
Housing		Aluminum (RoHS)
Cable Diameter		1mm
Cable Tension		7N (Standard 700mm range)
Speed		5 m.s^-1
Max Acceleration		20 m.s^-2
Weight		1 500g
Operating Temperature		-10 to +120°C
Storage Temperature		-20 to +125°C
IP (EN 60529)		IP67
