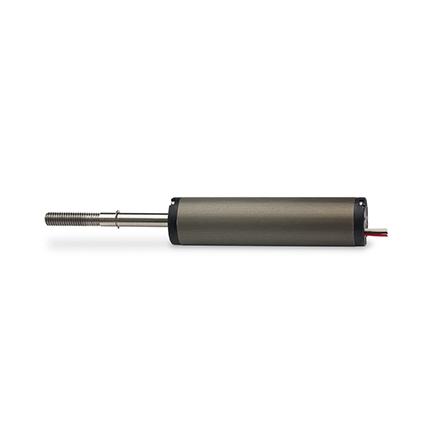

The 600 Series linear motion position transducers provide extremely accurate measurements in applications that require a rugged instrument operating in a tight area. Their long life, infinite resolution and smooth output deliver high reliability in critical measurements. Seven models provide a choice of electrical travel from 1” (25mm) to 12” (305mm) and include a floating design to accommodate shaft/interface connecting misalignments. An optional mounting bracket and rod end bearing are available.
BEI Sensors 600 Series Linear Potentiometer
600 Series Linear Potentiometer
Description
Additional information
| Brand |
|---|
About Bei Sensors
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
| Electrical Travel | See datasheet |
| Resistance Range | See datasheet |
| Resistance Tolerance | ±20% |
| Independent Linearity | See datasheet |
| Power Rating @ 70°C | 0.25 Watt per inch Derated to 0 Watts @ 125°C |
| Output Smoothness | 0.1% |
| Insulation Resistance @500 VDC | 1000 Megohms |
| Resolution | Infinite |
| Dielectric Strength | 500 VRMS |
| Temperature Range | -55° to +125°C |
