BEI Sensors Accessory SCC200 —

Description

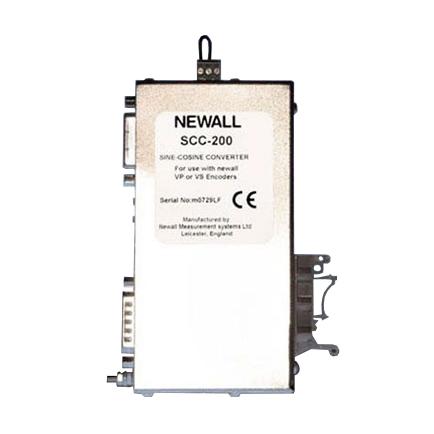

The SCC 200 signal converter is for use with MHG-VP, SHG-VP, SHG-VS and SHG-AV series Incremental and Absolute Linear Encoders. The sinusoidal incremental signals are produced by advanced processing of both the A and B signal channels. These channels are phase shifted by 90° and have a signal level of 1Vpp differential when terminated using the recommended circuitry with a common mode voltage of 2.5V. The signal levels are maintained at all speed levels providing no loss of signal integrity with increasing scanning frequency. Note: The SCC200 is designed for DIN rail mount. (European DIN rail standards: EN50022 & EN50035)

Additional information

Brand	Bei Sensors

About Bei Sensors

BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.

GET A PRICE

To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.

Specification

Power Supply (System)	5VDC ±5% <300mA
Operating Temperature	0° to 55°C
Storage Temperature	-20° to 70°C
Ingress Protection Level	IP54
EMC Compliance	BS EN 50081-2 BS EN 50082-2
Sinusoidal Voltage Output Signal	~1Vpp differential
Sinusoidal Signals A & B^(B) Signal Levels	0.8 to 1.2Vpp*, typically 1Vpp
Amplitude Ratio (A to B)	0.95 to 1.05
Phase Angle	90° ± 5° elec
Ref. Mark Zero Crossover Point	± 90° ± 5° elec
Dimensions (SCC200 only)	131mm x 67mm x 24mm^(C)
Weight (SCC200 only)	0.5lbs (0.23kg)
