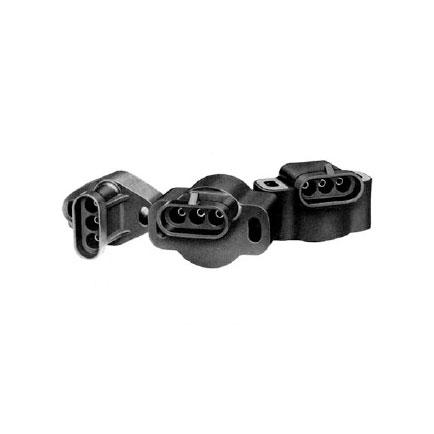

The Duncan 9800 Series Sensor is designed for rugged, continuous under hood environments. Features include high temperature, stable materials; insert molded integral connector/body design to eliminate weak/stress points or leaks during engine wash-down or water exposure. To meet a variety of mounting area needs and interconnection requirements, fourteen standard models are available. For engineering assistance or special configurations of the 9800 Series to meet specific applications, contact a Duncan representative or the factory.
BEI Sensors 9800 Series Model 9811-12 Throttle Position Sensor
9800 Series Model 9811-12 Throttle Position Sensor
Description
Additional information
| Brand |
|---|
About Bei Sensors
BEI Sensors is specialized in reliable position sensing products for harsh environments. BEI Sensors can provide a wide selection of products for any tough application, from basic off-the-shelf to entirely bespoke solutions. BEI Sensors provides a wide product portfolio, engineering experience, and unmatched product support to the industrial, military/aerospace, and transportation markets. Its product line includes rotary and linear position sensors, potentiometers, Hall Effect sensors, absolute and incremental encoders, panel controls, electronic interface modules.
GET A PRICE
To receive a proposal, please send your application to info@shop-encoder.com and specify the required positions and company details.
Specification
| Active Electrical Rotation | 85° ± 2° |
| Total Resistance | 5,000 ohms ±20% |
| Linearity | Std ±2.0% over active electrical rotation Spec. ±0.5% over active electrical rotation |
| Power Rating at 70°C | 0.15 Watts |
| Shaft Rotation Direction | CW Models: Female — 9801, 9805, 9811 Male — 9803, 9807, 9813 Leadwire — 9831 |
| CCW Models: Female — 9802, 9806, 9812 Male — 9804, 9808, 9814 Leadwire — 9832 |
